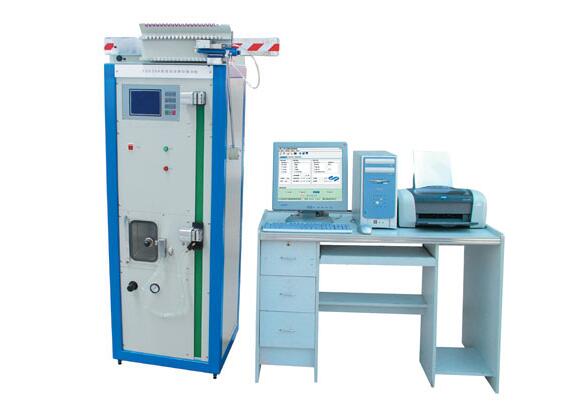

YG029A Automatic Single Yarn Power Machine
发表时间：2020-03-14 08:49 阅读次数：311
YG029A fully automatic single-strand strength machine is used to fully measure the breaking strength, elongation at break, elongation at break and breaking strength of single yarns such as cotton, wool, hemp, silk and chemical fiber. , fracture work, fracture time, CV value.
The native operation dialogue interface is displayed in Chinese LCD. The test action process, the collection and processing of test data, and the printing of test test reports have been fully automated. Easy to use and labor-saving, stable and reliable performance. It is a high-tech, fully-automatic, mechatronic tester.
The performance of this machine principle is in accordance with ISO 2062 and GB/T 3916 "Determination of Breaking Tensile Strength and Breaking Elongation of Single Yarn," in line with GB/T 14344 and FJ 556 "Test Methods for Breaking Tensile Strength and Elongation of Synthetic Filaments and Deformation Yarns" and other standards. . |
|
|
|
|
|
|
|
Mechanism model number
|
Constant velocity extension (CRE)
|
|
Force range
|
20～5000cN
|
|
Force accuracy
|
±1%
|
|
Elongation range
|
300mm(When clamping distance Gauge is 500mm)
|
|
Stretching speed
|
20～3500mm/min
|
|
Tension speed accuracy
|
±2%
|
|
Clipping distance
|
200, 250, 500mm adjustable
|
|
Holding method
|
Pneumatic (0.5～0.8MPa)
|
|
Number of tests per batch
|
≤300(test time of single bobbin× bobbins)
|
|
Test data output method
|
a, Chinese LCD interface display b, printer print
|
|
Printer Configuration
|
Stylus printers
|
|
Power supply
|
Voltage AC220V±10% Frequency 50Hz Power Consumption 0.5Kw
|
|
Compressed air
|
Pressure 0.5～0.8MPa Air consumption 0.01m3/hour
|
|
Host Dimensions
|
L700×W670×H1470mm
|
|
|
