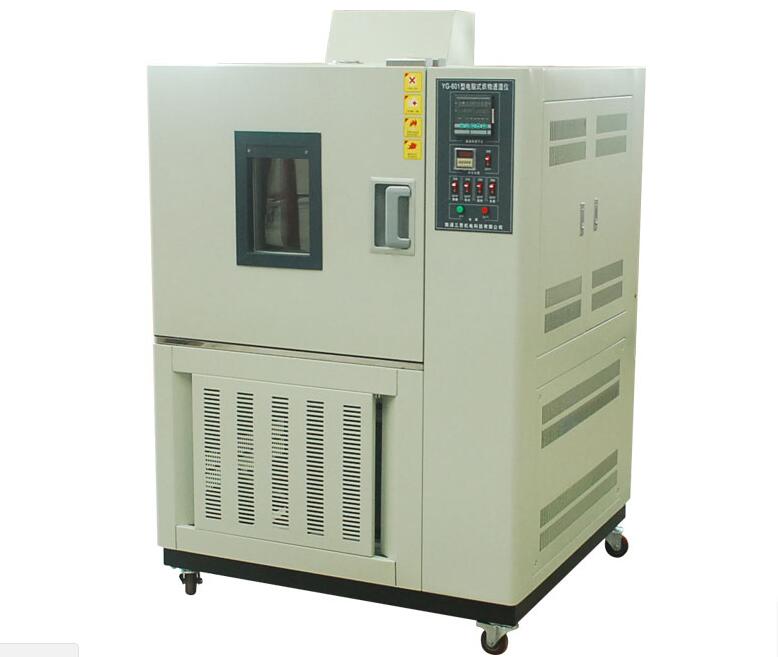

YG601 computerized fabric moisture permeability tester
发表时间：2020-03-13 16:01 阅读次数：209
|
○ The use of the most advanced programmable control equipment (imported PLC) can ensure reliable operation and data accuracy.
○ The use of thyristor stepless regulation technology enables continuous output of temperature and humidity signals with high control accuracy. With oven function, can do desiccant drying, integration of moisture permeability and drying.
○ Use steam-free humidification method to avoid humidity overshoot.
○ Customers can set their own temperature and humidity.
Used for moisture permeability test of various fabrics and coated fabrics.
Applicable standard: GB/T12704;ASTME96
|
|
|
|
|
|
YG601
|
|
Adjustable temperature
Control accuracy
|
0～100°C ±0.1°C
|
|
Adjustable humidity
Relative humidity
|
30 to 98% RH,±1%
|
|
Standard Test
Temperature and humidity
|
38°C±0.5°C 90±2%RH(hygroscopic method)
23°C±0.5°C 50±2%RH(US Standard)
20°C±0.5°C 65±2%RH(constant temperature and humidity)
|
|
Airflow velocity inside the box
|
0.3~0.5m/s
|
|
Drain cup size and number
|
Diameter: φ60mm
Cup depth: 22mm 8 only
|
|
Studio size
|
L500×W600×H500mm
|
|
Power supply
|
AC220V
|
|
|
