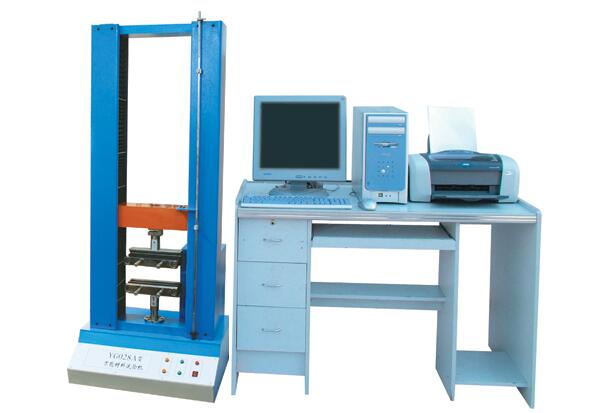

YG028A universal material testing machine
发表时间：2020-03-13 16:27 阅读次数：451
YG028A universal material testing machine is controlled by PC and works according to constant velocity extension principle (CRE). It is used to measure the tensile elongation at break and bursting of various fabrics and geotextiles. And puncture strength and elongation, and the test data statistics output by the printer, if necessary, can also print a strong elongation curve. It is also possible to determine the breaking strength and elongation at break of other composite materials.
The instrument principle and performance are in line with:
GB/T 3923.1 "Determination of fabric breakage and elongation at break"
GB/T 3923.2 "Determination of fabric breakage and elongation at break"
GB/T 15788 "Tension test method for geotextiles Wide strip method"
GB/T 14800 Geotechnical Bursting Strength Test Method
GB/T 19978 "Test method for puncture strength of geotextile" |
|
|
|
|
|
|
|
Load test range and accuracy
|
0-20000N,0-15000N,0-10000N,0-5000N,0-2500N ±1%
|
|
Grip distance and accuracy
|
25～250mm (stepless adjustable) Accuracy ±1mm
|
|
Stretching speed
|
10～500mm/min (stepless adjustable)
|
|
Tension speed accuracy
|
±2%
|
|
Holder effective height
|
200mm
|
|
Holding method
|
Handheld clamps
|
|
Elongation resolution
|
0.1mm
|
|
Power supply
|
Voltage 220V Frequency 50Hz Power Power 1.2kW
|
|
Data output
|
a Display ——CRT Color Monitor Strength, Elongation, Strength Curves
bPrint ——pin printer print test data single-value,statistical value and strength curve
|
|
Use environmental requirements
|
Temperature(20±5%)°C Humidity RH<80RH
|
|
Dimensions
|
L700×W450×H1600mm
|
|
|
