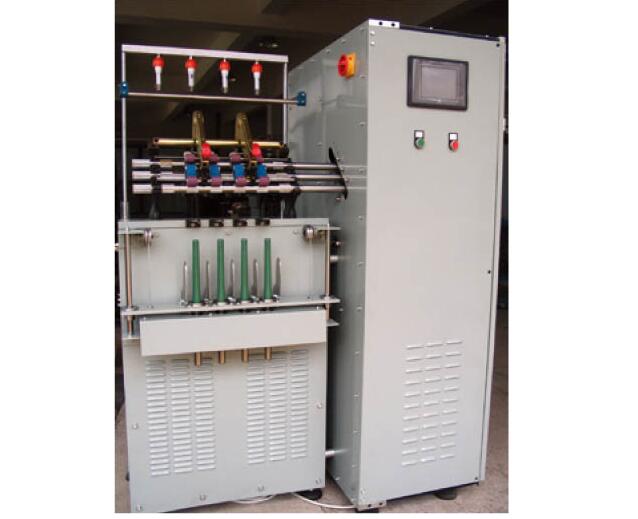

Small cotton spinning spinning machine
发表时间：2020-03-13 13:52 阅读次数：328
|
Function: Plain cotton spun yarn, core spun yarn, double color yarn, Slub, strong and weak crepe, etc. |
|
|
Models
|
HFX-A6
|
|
Control Methods
|
Touchscreen + PLC. Spindle speed / twist / draft multiple 1 / draft multiple 2 / core tension parameter setting / display, 30 or more multi-speed settings
|
|
Technical Parameters
|
4/6/8 spindles, (optional)
|
|
Spindle Speed
|
15000rpm
|
|
Pitch Distance
|
70mm
|
|
Drawing Mechanism
|
Cotton drafting, three rollers (can be fed in two different color rovings, and the roller speed alternates between the middle and back rollers)
|
|
Cradle
|
YJ-146
|
|
Rear Roller
|
28mm
|
|
Output roller/core roller
|
42mm
|
|
Dimensions
|
1.2m×0.8m×1.6m
|
|
power
|
About 750W (front roller, middle roller, back roller, core roller, ring, lift motor drive respectively)
|
|
Free spare parts list:
|
名称
|
规格
|
单位
|
数量
|
备注
|
|
Middle roller
|
Groove
|
Only
|
1
|
|
|
Front and rear roller
|
Single slot, double slot
|
Only
|
Each 1
|
Total 2
|
|
Upper apron BS
|
Φ37X27 wide
|
Only
|
4
|
|
|
Lower apron SQ
|
Φ83X30 wide
|
Only
|
4
|
|
|
Yarn tube
|
L=200
|
Only
|
50
|
|
|
Single bell mouth
|
|
Only
|
4
|
|
|
Spacer
|
|
Only
|
4
|
|
|
Guided Porcelain Pipes
|
|
Only
|
4
|
|
|
|
