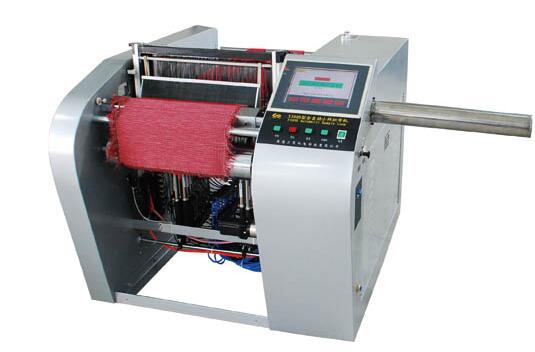

Y300S Automatic Rapier Weaving Machine
Release time：2025-11-05 18:17 Browse times：971
|
|
|
The Y300S automatic rapier weaving machine is a new generation of weaving machine equipment that is compatible with shuttleless weaving machines. The key components are imported. The warp yarn length, shed shape and size are scaled according to the new rapier looms, which solves the difference between the sample size and the batch product. Adapted to cotton, wool, silk, hemp, chemical fiber, blended fabrics, and other kinds of fabrics sample test weaving and product development.
|
|
|
|
|
Models
|
Y300S
|
|
Weft insertion method
|
Pneumatic control of unilateral rigid rapier weft insertion
|
|
Breadth
|
Maximum width of 12 inches and 20 inches.
|
|
Send by
|
Adopt stepper motor, active electronic let-off (optional dual-axis)
|
|
Coiling
|
Stepper motor coiling, weft density range 10~300/inch
|
|
Opening
|
20 pages electropneumatically controlled opening device (including 2 pages of slasher)
|
|
Color selection
|
8-color electronic pneumatic control weft selection
|
|
Weaving
|
Electric cam weaver
|
|
Yarn range
|
5～1200tex
|
|
Speed of the vehicle
|
30-45 times per minute
|
Tension
|
Intelligent tension setting with automatic adjustment during operation
|
Inspection device
|
equipped with a self-stop device for weft yarn inspection (warp yarn inspection optional)
|
Control System
|
Equipped with a 10.4-inch true color touchscreen, the system utilizes high-performance PLC (Programmable Logic Controller) to deliver an intuitive human-machine interface
|
|
Supporting air source
|
0.45～0.75MPa, above 500L/min
|
|
Dimensions
|
1200×830/1130×1100 mm (length, width, height) (12 inches)
1200×1100/1600×1100 mm (length, width, height) (20 inches)
|
|
