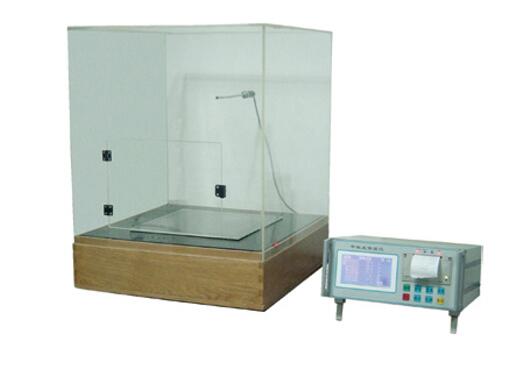

YG606D type flat fabric warmer
Release time：2020-03-13 16:12 Browse times：205
Used to inspect the insulation properties of various fabrics, seams, and other insulation materials.
Applicable standard: GB/T 11048
● Microcomputer control and data processor can directly measure and calculate the performance of the sample. (Insulation rate, heat transfer coefficient, Crow value) No manual calculation is required, and the test speed is fast.
● Large-screen liquid crystal display can display, store all test data and final statistical results, and provide inquiries.
● Print test data at any time.
● The use of high-precision temperature sensors greatly improves the test accuracy of the instrument. |
|
|
|
|
|
YG606D
|
|
Temperature adjustment range
|
20-50°C
|
|
Temperature control accuracy
|
±0.5°C
|
|
Temperature indication resolution
|
0.1°C
|
|
Warm-up time setting range
|
0～99.9min
|
|
Number of cycles
|
1~9 times
|
|
Sample size
|
300×300mm
|
|
Test board size
|
250×250mm
|
|
Dimensions
|
L520×W630×H755mm
|
|
Weight
|
65kg
|
|
Power supply
|
AC220V±10%, 220W, 50Hz
|
|
|
