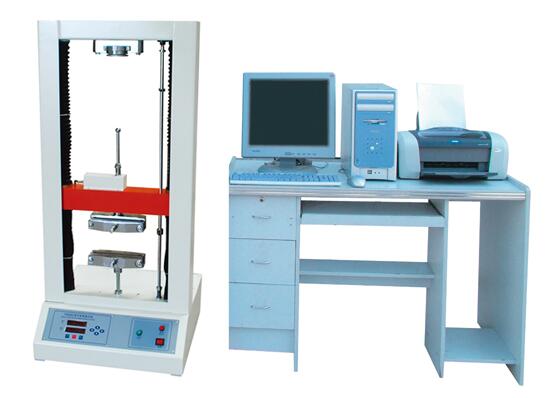

YG026C multifunctional electronic fabric strength machine

Release time：2020-03-13 16:27 Browse times：355

For measuring the tensile breaking strength and elongation at break of various cotton, wool, linen, silk, and chemical fiber woven fabrics. The instrument is controlled by a PC and the data is output by the printer. According to the user's requirements , It can also measure tear, peel and burst strength.
Applicable standards: GB/T3917.2.3, GB/T3923.1, GB/T3812.5, GB/T41821, GB4689.6, FZ/T01031, FZ/T01085, FZ/T20019, FZ/T60005, FZ, etc.

Models	YG026C
Strong testing range	0～3000N±1%
Strong testing range	0～5000N±1% (user purchase)
Clipping distance	25～250mm±1%(stepless adjustable)
Stretching speed	1～600mm/min (stepless adjustable)
Tension speed accuracy	2%
Host Dimensions	L600×W430×H1250mm
