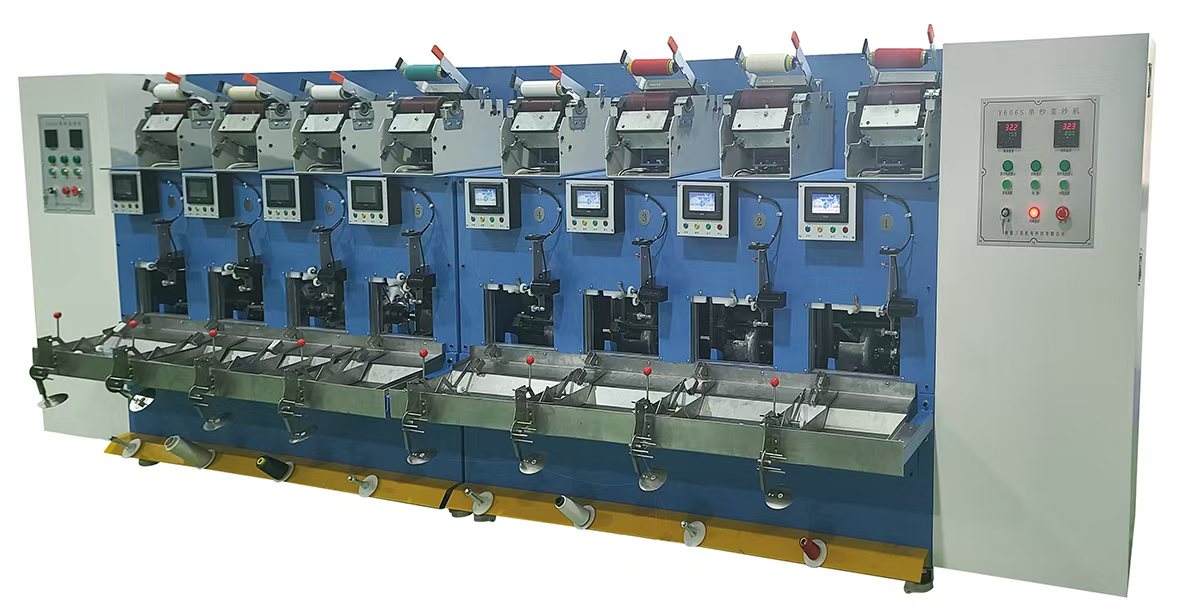

Y606S-8 single yarn sizing machine
发表时间：2025-11-04 14:39 阅读次数：561
|
|
|
This machine automatically sizing, drying, and winding individual yarns into packages that meet the requirements of subsequent processes. This simplifies the production process, expands the range of sizing, and reduces the amount of stock. And the consumption of raw materials, widely used in wool, linen, cotton, chemical fiber, yarn-dyed, industrial system and other industries.
|
|
|
|
|
Models
|
Y606S-8
|
|
Number of spindles
|
8 spindles
|
|
Speed of the vehicle
|
10-300 m/min (depending on the yarn type)
|
|
Yarn range
|
5-500 tex, including cotton, wool, silk, hemp, satin, and synthetic fibers
|
|
Oven heating method
|
electric heating
|
Temperature control mode
|
automatic constant temperature
|
|
Speed measurement method
|
Electronic, speed display on touch screen
|
Control method
|
Single spindle dual servo control, the rotating cage motor in the drying room adopts servo infinitely variable speed regulator speed control; the trough cylinder adopts servo tracking.
|
Tension method
|
automatic tension control
|
|
Motor power
|
0..75KW/ spindle (rotary cage motor), 0.75KW/spindle (cylinder motor)
|
|
Heating capacity
|
1.5KW per spindle (drying chamber) and 1KW per spindle (pre-drying)
|
|
