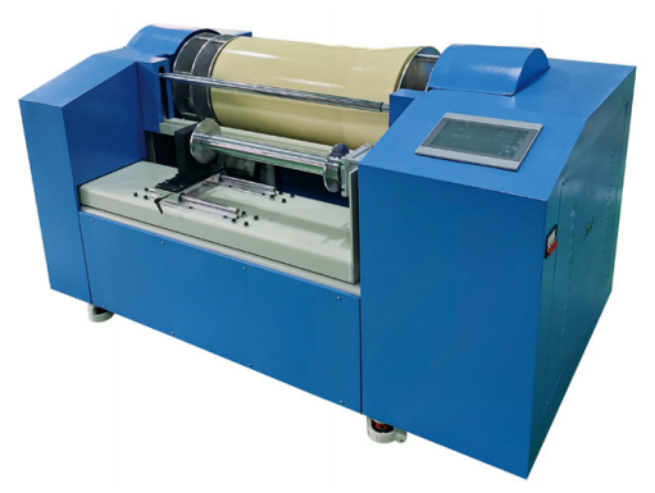

Y508S intelligent slitting warping machine
发表时间：2020-03-14 08:56 阅读次数：241
|
This machine is a new type single yarn warping machine developed by our company for the proofing of textile companies and colleges and universities. It can automatically sample products, weave samples and test small quantities of fabrics. Conducting warping, with high efficiency, accuracy, saving raw materials and other characteristics, suitable for wool spinning, cotton-padded jacket, chemical fiber, silk, yarn-dyed, towel, home textile and other industries sample and product development, but also for textile laboratory samples research and develop.
|
|
|
|
|
Models
|
Y508S
|
|
Work width
|
200-1500mm
|
|
Warping speed
|
0~300m/min
|
|
Yarn range
|
5~500teX
|
|
Warping length
|
5~500m
|
|
Number of cheeses
|
6-400 (customized on request)
|
|
Warp arrangement
|
Servo motor control, accuracy can reach 0.01mm
|
|
Cone ratio
|
1:5 or 1:8 standard type
|
|
Reverse shaft speed
|
5-100mm stepless adjustable
|
|
Machine footprint size
|
L1700×W1000×H1300mm
|
|
