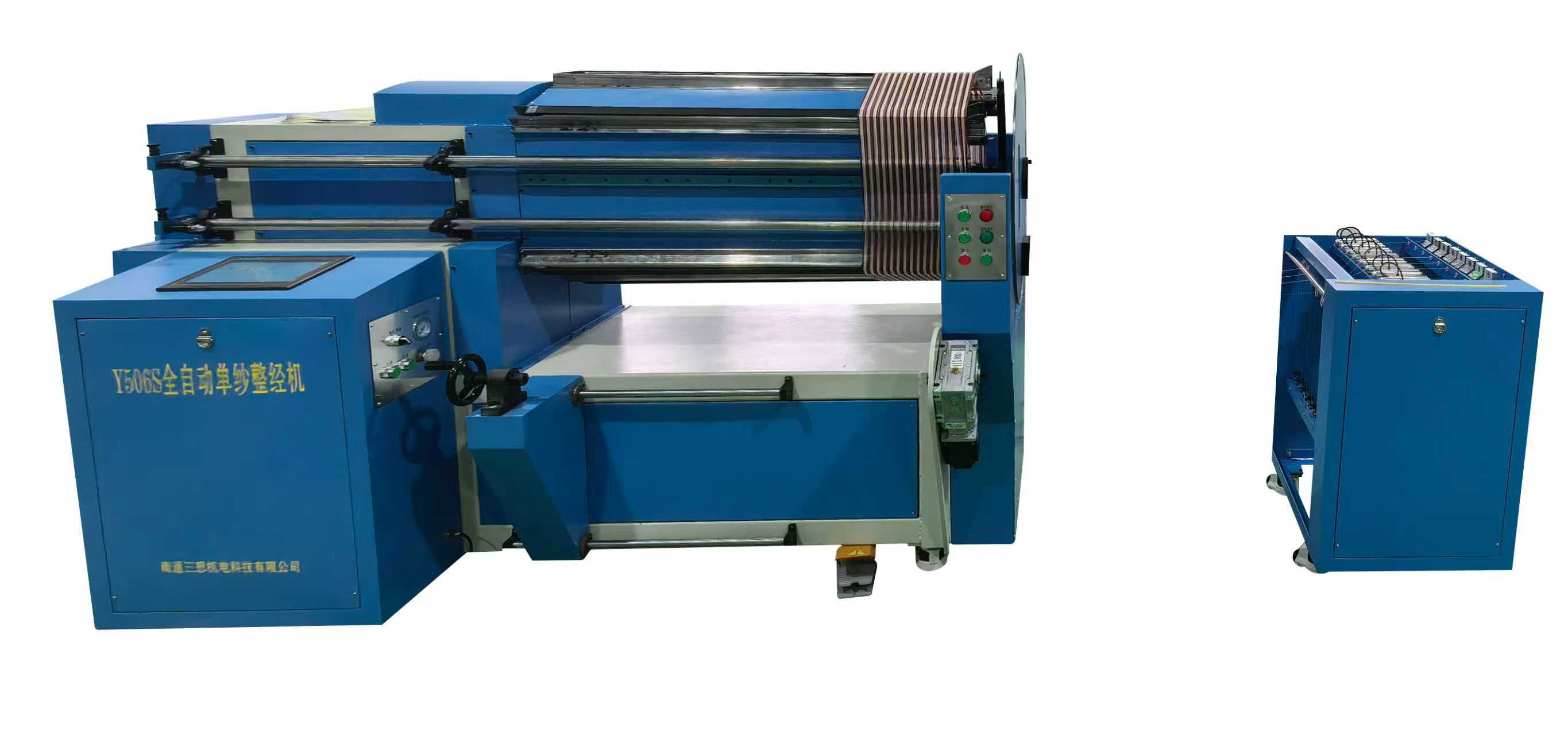

Y506S Fully automatic single yarn warping machine
发表时间：2025-11-05 18:17 阅读次数：619
|
|
|
This innovative single-warp warping machine, specifically developed by our company for textile enterprises 'sample production and academic institutions' teaching purposes, automatically processes product samples, woven prototypes, and small-batch test fabrics. Featuring high efficiency, precision, and material conservation, it is ideal for sample development and product innovation across industries including wool textiles, cotton textiles, chemical fibers, silk, colored fabrics, towels, and home textiles. The system also supports laboratory research and development of textile samples.
|
|
|
|
|
Models
|
Y506S
|
|
Work width
|
0-1000mm
|
|
Yarn arrangement
|
controlled by servo motor, with precision up to 0.01mm
|
|
Maximum warp speed
|
0 ~ 300 m/min
|
|
Weft length
|
1.8m ~ 18m
|
|
Yarn count
|
5-800tex
|
|
Color selection
|
8-cylinder pneumatic automatic yarn selection
|
Warp yarn
|
Quick and precise color selection and change, with a yarn breakage detection prompt
|
|
Reverse shaft
|
The foot pedal switch controls start/stop, ensuring constant speed winding with uniform yarn tension
|
|
Programming mode
|
10-inch human-computer interactive touch interface
|
|
Air source
|
Inlet pressure 0.45～0.8MPa, maximum gas consumption ≤600 L/min
|
Reel Rewinding Device
|
The AC variable frequency motor controls the rewinding speed, ensuring constant-speed winding of warp yarns during the process. The damping structure and uniform tension distribution on the bobbin frame prevent tension loss during yarn replacement, guaranteeing consistent and reliable warp yarn performance
|
Hardware
|
The control system utilizes PLC and touchscreen communication. Process control software features: warp process configuration, wefting parameter adjustment, wefting monitoring, fault detection, and parameter modification
|
Dimensions
|
5800×1250×1450 mm (length×width×height)
|
Power supply
|
AC380V,4000W
|
|
