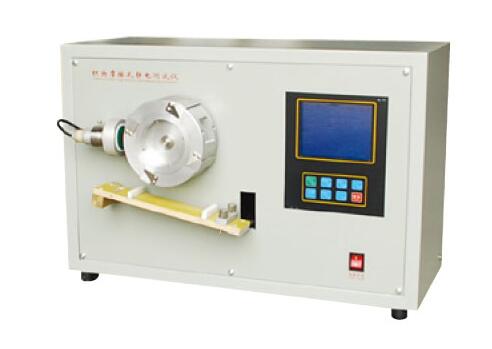

YG402 type fabric friction electrostatic tester
发表时间：2020-03-13 15:48 阅读次数：229
Evaluation of electrostatic properties of fabrics or yarns and other materials that are charged in friction under laboratory conditions
Applicable Standards: ZBW04009-89 《Measurement Method for Friction Electric Voltage of Fabrics》 |
|
|
|
|
|
YG402
|
|
Measuring range of electrostatic voltage values
|
0～10KV,accuracy:≤±1%
|
|
Sample rotation speed
|
90±10m/min
|
|
Friction time
|
0.1 to 59.9 seconds adjustable
|
|
Half-life time range
|
0.1S～9999.9S
|
|
Sample size
|
50×80mm2 six blocks: 200×25mm2
|
|
Host Dimensions
|
45mm×215mm×260mm
|
|
Electric control box dimensions
|
450mm×256mm×185mm
|
|
Working power supply
|
AC220V±10% 50Hz 300W
|
|
Weight
|
About 50kg
|
|
|
|
