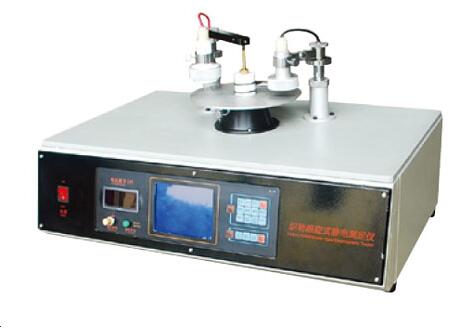

YG401型织物感应式静电测试仪
发表时间：2020-03-13 15:48 阅读次数：127
Used to determine the electrostatic properties of various textile raw materials and finished products (including fibers, yarns, fabrics, carpets, decorative fabrics) under laboratory conditions. It can also be used to determine other tablets (plates). The electrostatic properties of materials such as paper, rubber, plastics, composite boards, etc.
Applicable standards: FZ/T01042-1996 "Determination of electrostatic voltage half-life electrostatic properties of textile materials", GB/T12703-1991 "Static testing methods for textiles" |
|
|
|
|
|
YG401
|
|
Measuring range of electrostatic voltage values
|
0～10KV
|
|
Half-life time limit range
|
0 to 10000 seconds, error ± 1 second
|
|
Sample plate rotation speed
|
1500 rpm (r.p.m.)
|
|
Discharge time
|
0 to 99 seconds adjustable (standard requirements: 30 seconds & plusmn; 0.1 seconds)
|
|
Discharge distance between needle electrode and sample
|
20mm
|
|
Measuring the distance between the probe and the test specimen
|
15mm
|
|
Samples and dimensions
|
60mm×80mm three blocks
|
|
Power supply
|
220V 50Hz 300W
|
|
|
